EASyS Advantage – pediatric wheelchair

Maximum driving comfort for an easy-going day

Sitting for long periods can be tiring, but sometimes it can not be avoided. So it is good if the pediatric wheelchair is perfectly adaptable – due to its many setting options – and luxuriously soft. The child can then sit or lie in the cozy, comfortable cushions for a long time.

Further informations

Videos "How to's" → EASyS Advantage

---

---

---

---

---

---

---

---

---

---

---

Colour choices of EASyS Advantage
(Tap/click one of the coloured circles to see photos of the coloured product)

{modal url="/cc_form.html" width="800" height="auto"} – Sign up to get interesting news, special offers and updates delivered to your inbox.{/modal}

Why should you choose EASyS Advantage?

Suspension

With its special damping elements, the suspension
ensures a pleasent experience when the ped. wheelchair is moving, without undue sudden movements for the child
prevents spongy steering and provides excellent convenience when pushing the pediatric wheelchair
helps reduce spasticity

One-hand adjustment

One lever – two practical functions
Seat tilting for a rest position or active sitting
Disconnect seat unit from chassis and turn it around: the child can look in the direction of travel or to you

Adjustment

For individual and therapeutic adaption,
the seat, back and footrest are adjustable
the seat can be turned into 180° reclining surface – without danger of tipping
physiological pivot points are located at hip/knee joints
the back height, seat witdh and seat depth can be adjusted

Safety

The good feeling of being safe and sound is provided by
the unique BSS , with automatic movement of the center of gravity as protection against tipping
the luminous reflective stripes that provide good visibility in the dark
quick and easy adjustment using the functional parts that are marked in red

Upholstery & cover

To ensure an all-around comfortable seating position
the additional seat cushion provides extra comfort and can be exchanged as needed
the seat cover is soft and breathable – for a high degreee of softness without the inconvenience of seating

Storage space

Under the seat,
there is plenty of space for shopping, diapers and more
a washable basket (included) or a large tray (accessory) can be attached

Technical data

1. back height 2. lower leg length 3. seat depth 4. seat width 5. overall width 6. push bar height 7. shoulder height

Videos "How to's" → EASyS Advantage

---

---

---

---

---

---

---

---

---

---

---

Advantage Gallery

• All
• Functions
• Accessories

Easy seat assembly and rapid change of viewing direction – without tools:
forward facing | rear facing

180° lying position for children who need it

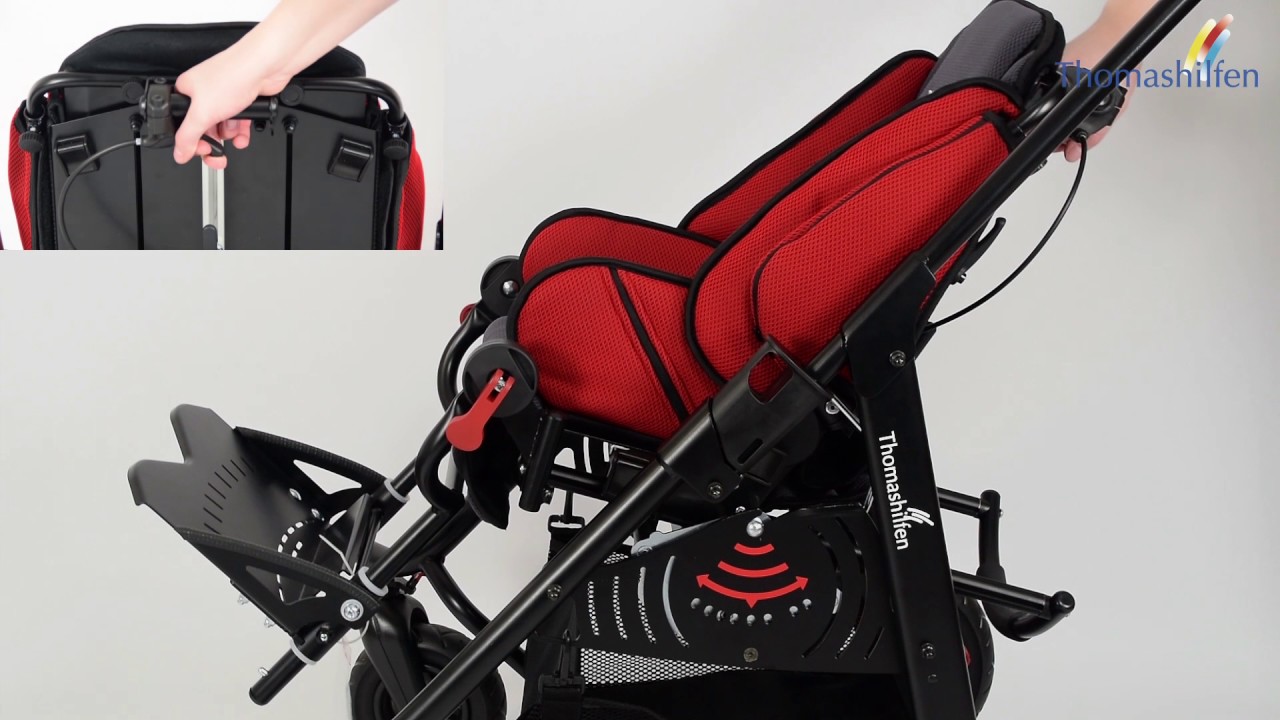

A single release lever on the back:
seat tilt-in-space, separates the seat from the base frame

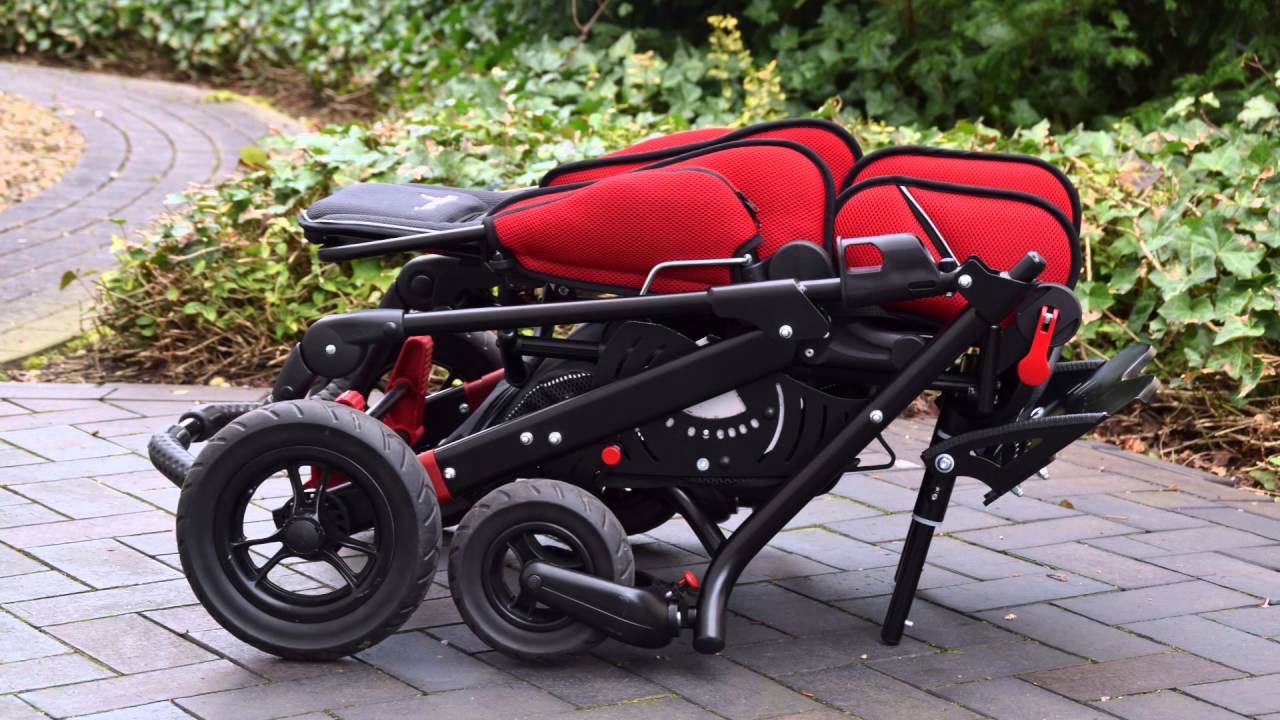

Transportation lock to prevent unwanted unfolding, e.g. when lifting the stroller into the car

Soft suspension absorbs vibrations and ensures a good riding pleasure without compromising steering

Conveniently brake, clearly visible in red

Lever for easy adjustment of the knee angle at the pivot point

New sportier footrest

Much more storage space available under the seat: washable basket (inclusive) | vent tray (optional)

Extremely thick cushions for great comfort

Padding / Upholstery set, red

Technical details	size 1	size 2
Item code	6247	6447
Colour	red	red

Padding / Upholstery set, blue

Technical details	size 1	size 2
Item code	6248	6448
Colour	blue	blue

Padding / Upholstery set, green

Technical details	size 1	size 2
Item code	6249	6449
Colour	green	green

Padding / Upholstery set, magenta

Technical details	size 1	size 2
Item code	6246	6446
Colour	magenta	magenta

Padding / Upholstery set, gray

Technical details	size 1	size 2
Item code	6245	6445
Colour	gray	gray

Foot straps

Technical details	size 1	size 2
Item code	6648/2	6648/2
Belt length	34.3"	34.3"
Colour	black	black

Abduction block

Technical details	size 1	size 2
Item code	6620/6	6720/6
Size (w x h x l)	2.4 x 3.5 x 3.9"	2.8 x 4.1 x 4.3"
Colour	gray	gray

Hip supports 2 point, padded, SR buckle with front pull

Technical details	size 1	size 2
Item code	8420/1	8470/1
Size of pad (w x d)	5.9 x 2"	6.7 x 2"
Belt length	51.2"	51.2"
Colour	black	black

Hip supports 4 point, padded, SR buckle with front pull

Technical details	size 1	size 2
Item code	8421/1	8471/1
Size of pad (w x d)	5.9 x 3.1"	6.7 x 3.1"
Rear belt length	47.2"	47.2"
Front belt length	19.7"	19.7"
Colour	black	black

Soft pelvic harness

Technical details	size 1	size 2
Item code	6614/6	6714/6
Rear upholstery width	8.3"	8.3"
Belt length	17.7"	17.7"
Colour	black	black

Crotch strap

Technical details	size 1	size 2
Item code	6341/1	6341/1
Belt length	approx. 7.1 - 13"	approx. 7.1 - 13"
Colour	black	black
Note	can only be used in combination with pelvic harnesses	can only be used in combination with pelvic harnesses

Tray, height adjustable, clear with picture window

Technical details	size 1	size 2
Item code	6628/1	6728/1
Size (w x d)	5.9 x 8.7"	23.6 x 14.3"
Height to seat surface	5.9 x 8.7"	5.9 - 8.7"
Edge height (inside)	1"	1"
Angle adjustment	approx. 27°	approx. 27°
Depth adjustment range	6.3"	7.5"
Cut-out (w x d)	16.1 x 5.5"	17.9 x 6.9"
Material thickness	0.3"	0.3"
Colour	gray	gray

Chest harness support, butterfly style

Technical details	size S	size M	size L
Item code	6616/6	6617/6	6717/6
A	7.3"	9.8"	10"
B	11.8"	13.2"	17.7"
C	6.3"	7.3"	9.1"
D	5.5"	6.7"	8.7"
E	4.5"	4.1"	4.5"
F	7.1"	8.5"	9.8"
Colour	black	black	black

Chest harness support, vest style

Technical details	size S	size M	size L
Item code	6631/6	6632/6	6731/6
Upholstered surface (w x l)	13 x 11.8"	15 x 13.8"	17.3 x 16.1"
Belt length, top	25.6"	25.6"	25.6"
Colour	black	black	black

Chest harness support, H-style

Technical details	size 1	size 2
Item code	6629/7	6629/7
Size Shoulder pads (w x l)	2 x 5.9"	2 x 5.9"
Shoulder belt length	23.6"	23.6"
Pelvis belt length	15.7"	15.7"
Colour	black	black

Rigid Lateral trunk support

Technical details	size 1	size 2
Item code	6634/6	6734/6
Size (h x d)	5.9 x 5.1"	6.7 x 5.9"
Colour	gray	gray

Flexible Lateral trunk support with chest belt

Technical details	size 1	size 2
Item code	6633/2	6633/2
Supporting surface (h x d)	3.9 x 7.9"	3.9 x 7.9"
Colour	gray	gray

Rigid lateral head support

Technical details	size 1	size 2
Item code	6624/6	6724/6
Size (h x d)	5.1 x 4.3"	5.9 x 5.5"
Colour	gray	gray

Grab bar, padded, black

Footrest-tube upholstery

Technical details	size 1	size 2
Item code	6230	6230
Size (w x h)	2.8 x 5.9"	2.8 x 5.9"
Colour	gray	gray

Sun and rain cover

Technical details	size 1	size 2
Item code	6637/61	6637/61
Hood (w x h, inner dimension)	16.9 x 20.1"	16.9 x 20.1"
Hood pocket (w x h x d)	9.4 x 11 x 2"	9.4 x 11 x 2"
Colour	black / light gray	black / light gray
Note	suitable up to max. 71 cm / 28" vertex height	suitable up to max. 71 cm / 28" vertex height

Sun and rain cover with leg blanket

Technical details	size 1	size 2
Item code	6637/6	6637/6
Hood (w x h, inner dimension)	16.9 x 20.1"	16.9 x 20.1"
Hood pocket (w x h x d)	9.4 x 11 x 2"	9.4 x 11 x 2"
Leg blanket (w x l)	16.9 x 39.4"	16.9 x 39.4"
Colour	black / light gray	black / light gray
Note	suitable up to max. 71 cm / 28" vertex height	suitable up to max. 71 cm / 28" vertex height

Transparent cover / Canopy, rain only, clearwith leg blanket

Technical details	size 1	size 2
Item code	6638/1	6638/1
Hood (w x h, inner dimension)	16.9 x 20.1"	16.9 x 20.1"
Leg blanket (w x h)	16.9 x 39.4"	16.9 x 39.4"
Colour	transparent	transparent
Note	suitable up to max. 71 cm / 28" vertex height	suitable up to max. 71 cm / 28" vertex height

Rain shield

Technical details	size 1	size 2
Item code	6739	6739
Hood (w x h, inner dimension)	16.9 x 20.1"	16.9 x 20.1"
Opening (w x h)	13 x 13.4"	13 x 13.4"
Leg blanket (w x l)	23.6 x 47.2"	23.6 x 47.2"
Colour	transparent	transparent
Note	can only be used together with sund and rain cover	can only be used together with sund and rain cover

Sleeping bag, summer weight

Technical details	size 1	size 2
Item code	6619/5	6719/5
Bottom part of leg blanket (w x l)	13.8 x (26.8 - 31.5)"	15.7 x (35.4 - 40.9)"
Leg blanket (lower leg length)	12.2"	16.9"
Colour	black / light gray	black / light gray

Sleeping bag, winter weight

Technical details	size 1	size 2
Item code	6618/5	6718/5
Bottom part of leg blanket (w x l)	13.8 x (26.8 - 31.5)"	15.7 x (35.4 - 40.9)"
Leg blanket (lower leg length)	12.2"	16.9"
Colour	black / light gray	black / light gray

Umbrella, angle adjustable

Technical details	size 1	size 2
Item code	65942	65942
Diameter Ø	25.6"	25.6"
Height	28.3"	28.3"
Colour	gray	gray

Tip assist

Technical details
Item code	6750/2
Tread surface (w x l)	1.6 x 3.1"
Color	anthracite

Vent tray

Technical details	size 1	size 2
Item code	6294/1	6494/1
Size (w x h x l)	15 x 1.2 x 15.4"	16.9 x 1.2 x 15.4"

Pneumatic wheels, full set

Technical details
Item code	6647/1
Wheel size swivel wheels (front)	7,5"
Wheel size (rear)	10"

Videos

Downloads

Assembly instructions

{modalcontent modal-content-3}

Which dimensions are important – and why?

To obtain a well-fitting pediatric wheelchair, you should also know the body measurements of your child. As a therapist or parent, it is therefore important to measure the child. Here you can see what dimensions these are and how to select them.

  1   Back height

A customized back height is important to provide support and stability for the child in the back and head areas. The upper edge of the backrest should be at least at the top of the child’s head so that the head is supported. A separate headrest can be chosen for some pediatric wheelchairs. Then the backrest must reach at least to the lower edge of the shoulder blade; an individual headrest shape is then chosen for the head.

  2   Lower leg length

The child’s feet should stand at a 90° angle on the footrest of the pediatric wheelchair. The lower leg length is measured between the hollow of the knee to the sole of the foot or shoe.

  3   Seat depth

To ensure that the child sits as stably as possible, it is important to strive for an optimally adapted seat depth. The seat depth is the extension of the line of the back down to a point about two fingers wide above the hollows of the knees.

  4   Seat width

The more accurately the seat width fits, the straighter the child sits in the pediatric wheelchair. The seat width is measured in the sitting position at the height of the pelvis, from the outside of the thigh. Precise pelvic guidance gives the child ideal conditions for upper body activity
